Simple to use interface with detail in-system instructions
Reverse Proxy
- Subdomain Reverse Proxy
- Virtual Directory Reverse Proxy
Redirection Rules
TLS / SSL setup and deploy
Blacklist by country or IP address (single IP, CIDR or wildcard for beginners)
Global Area Network Controller Web UI (ZeroTier not included)
Integrated Up-time Monitor
Web-SSH Terminal
Utilities
- CIDR IP converters
- mDNS Scanner
- IP Scanner
Others
- Basic single-admin management mode
- External permission management system for easy system integration
- SMTP config for password reset

Build from Source

Requires Go 1.20 or higher

git clone https://github.com/tobychui/zoraxy
cd ./zoraxy/src/
go mod tidy
go build

sudo ./zoraxy -port=:8000

Usage

Zoraxy provides basic authentication system for standalone mode. To use it in standalone mode, follow the instructionss below for your desired deployment platform.

Standalone Mode

Standalone mode is the default mode for Zoraxy. This allows a single account to manage your reverse proxy server, just like a home router. This mode is suitable for new owners to homelabs or makers starting growing their web services into multiple servers.

Linux

sudo ./zoraxy -port=:8000

Windows

Download the binary executable and double click the binary file to start it.

Raspberry Pi

The installation method is same as Linux. If you are using a Raspberry Pi 4 or newer models, pick the arm64 release. For older version of Pis, use the arm (armv6) version instead.

Other ARM SBCs or Android phone with Termux

The installation method is same as Linux. For other ARM SBCs, please refer to your SBC's CPU architecture and pick the one that is suitable for your device.

Docker

See the /docker folder for more details.

Start Paramters

Usage of zoraxy:
  -autorenew int
        ACME auto TLS/SSL certificate renew check interval (seconds) (default 86400)
  -fastgeoip
        Enable high speed geoip lookup, require 1GB extra memory (Not recommend for low end devices)
  -info
        Show information about this program in JSON
  -log
        Log terminal output to file (default true)
  -mdns
        Enable mDNS scanner and transponder (default true)
  -noauth
        Disable authentication for management interface
  -port string
        Management web interface listening port (default ":8000")
  -rpt string
        Reserved
  -sshlb
        Allow loopback web ssh connection (DANGER)
  -version
        Show version of this server
  -webfm
        Enable web file manager for static web server root folder (default true)
  -webroot string
        Static web server root folder. Only allow chnage in start paramters (default "./www")
  -ztauth string
        ZeroTier authtoken for the local node
  -ztport int
        ZeroTier controller API port (default 9993)

External Permission Management Mode

If you already have an upstream reverse proxy server in place with permission management, you can use Zoraxy in noauth mode. To enable noauth mode, start Zoraxy with the following flag:

./zoraxy -noauth=true

Note: For security reaons, you should only enable no-auth if you are running Zoraxy in a trusted environment or with another authentication management proxy in front.

Use with ArozOS

The ArozOS subservice is a built-in, permission-managed, reverse proxy server. To use Zoraxy with ArozOS, connect to your ArozOS host via SSH and use the following command to install Zoraxy:

# cd into your ArozOS subservice folder. Sometimes it is under ~/arozos/src/subservice.
cd ~/arozos/subservices
mkdir zoraxy
cd ./zoraxy

# Download the release binary from Github release.
wget {binary executable link from release page}

# Set permission. Change this if required.
sudo chmod 775 -R ./

# Start zoraxy to see if the downloaded arch is correct.
./zoraxy

# After unzipping, press Ctrl + C to kill it.
# Rename it to validate the ArozOS subservice binary format.
mv ./zoraxy zoraxy_linux_amd64

# If you are using SBCs with a different CPU arch, use the following names:
# mv ./zoraxy zoraxy_linux_arm
# mv ./zoraxy zoraxy_linux_arm64

# Restart ArozOS
sudo systemctl restart arozos

To start the module, go to System Settings > Modules > Subservice and enable it in the menu. You should be able to see a new module named "Zoraxy" pop up in the start menu.

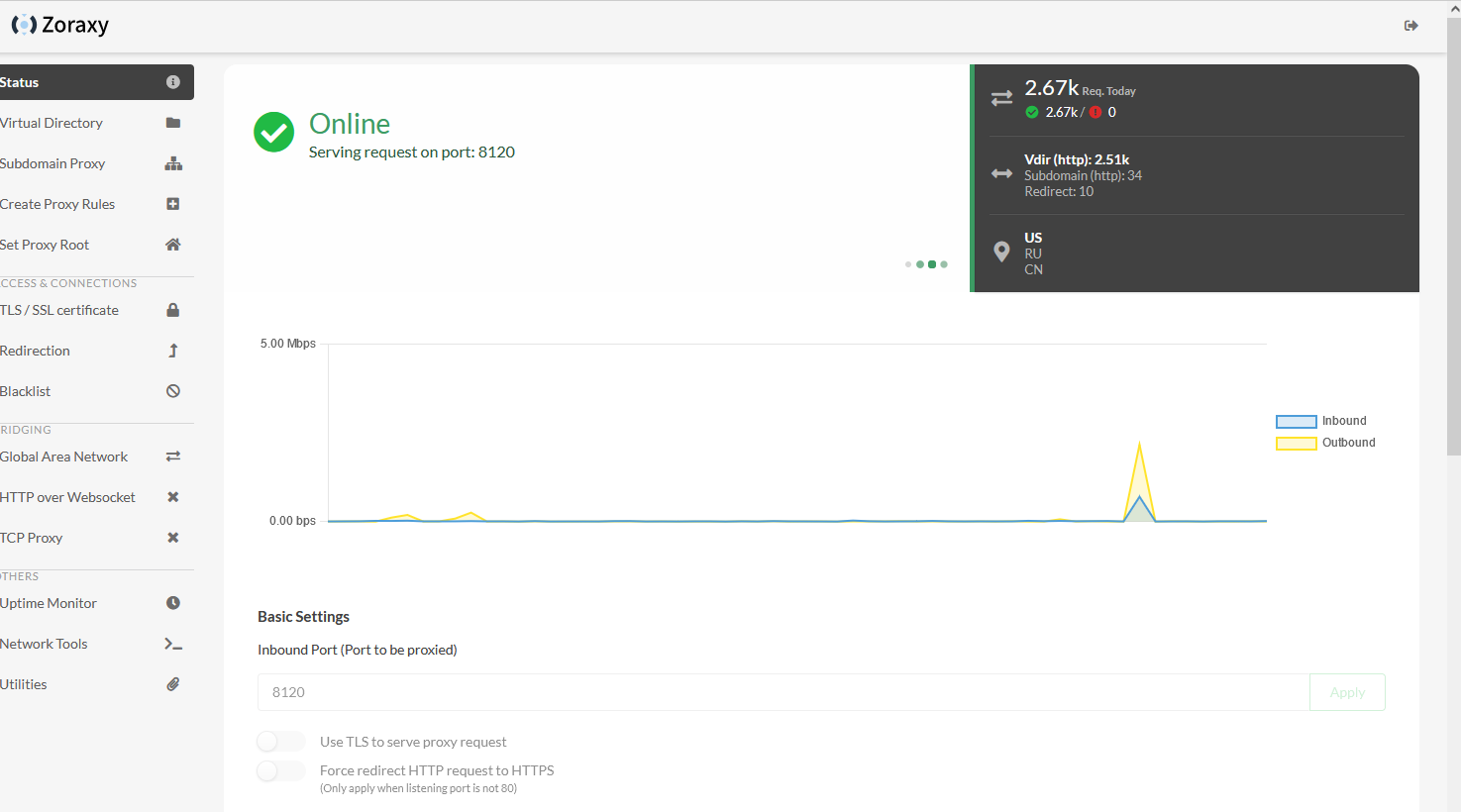

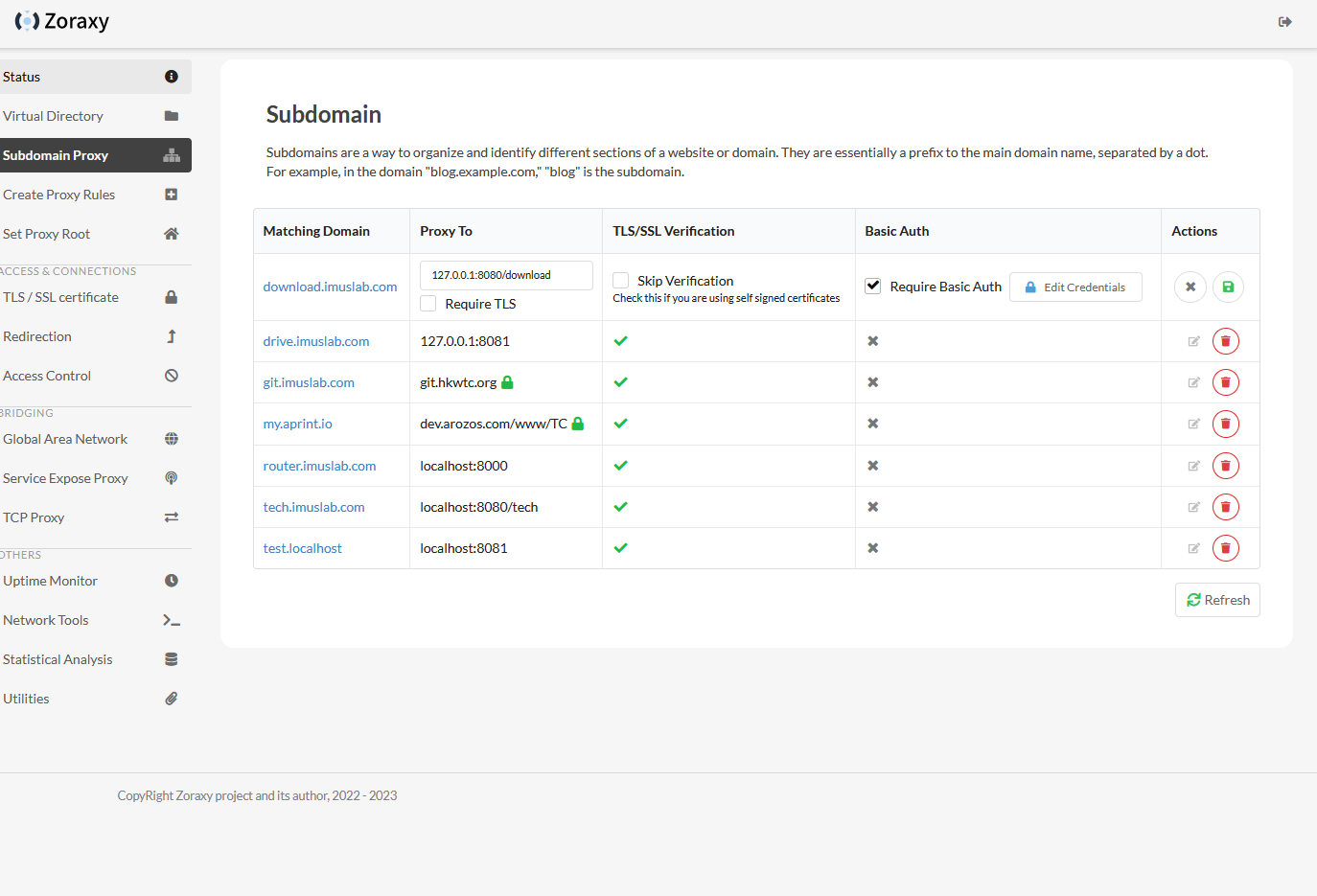

Screenshots

More screenshots on the wikipage Screenshots!

FAQ

There is a wikipage with Frequently-Asked-Questions!

Global Area Network Controller

This project also compatible with ZeroTier. However, due to licensing issues, ZeroTier is not included in the binary.

To use Zoraxy with ZeroTier, assuming you already have a valid license, install ZeroTier on your host and then run Zoraxy in sudo mode (or Run As Administrator if you are on Windows). The program will automatically grab the authtoken in the correct location on your host.

If you prefer not to run Zoraxy in sudo mode or you have some weird installation profile, you can also pass in the ZeroTier auth token using the following flags::

./zoraxy -ztauth="your_zerotier_authtoken" -ztport=9993

The ZeroTier auth token can usually be found at /var/lib/zerotier-one/authtoken.secret or C:\ProgramData\ZeroTier\One\authtoken.secret.

This allows you to have an infinite number of network members in your Global Area Network controller. For more technical details, see here.

Web SSH

Web SSH currently only supports Linux based OSes. The following platforms are supported:

linux/amd64
linux/arm64
linux/armv6 (experimental)
linux/386 (experimental)

Loopback Connection

Loopback web SSH connection, by default, is disabled. This means that if you are trying to connect to an address like 127.0.0.1 or localhost, the system will reject your connection for security reasons. To enable loopback for testing or development purpose, use the following flags to override the loopback checking:

./zoraxy -sshlb=true

If you like the project and want to support us, please consider a donation. You can use the links below

tobychui (Primary author)
PassiveLemon (Docker compatibility maintainer)

License

This project is open-sourced under AGPL. I open-sourced this project so everyone can check for security issues and benefit all users. If you plan to use this project in a commercial environment (which violate the AGPL terms), please contact toby@imuslab.com for an alternative commercial license.
